Pearl ELM-B

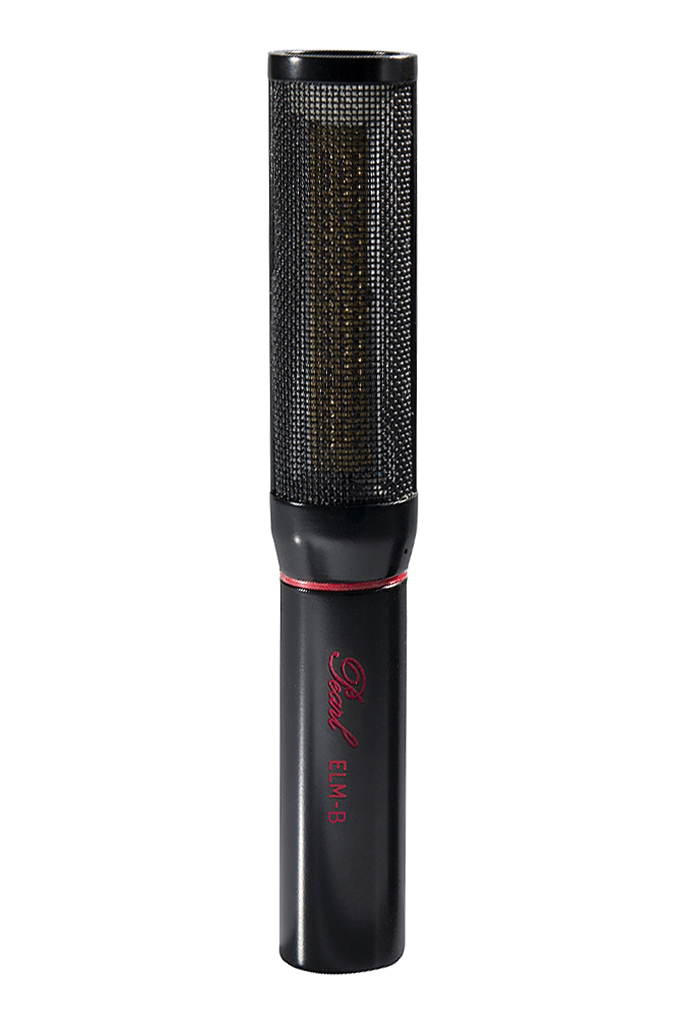

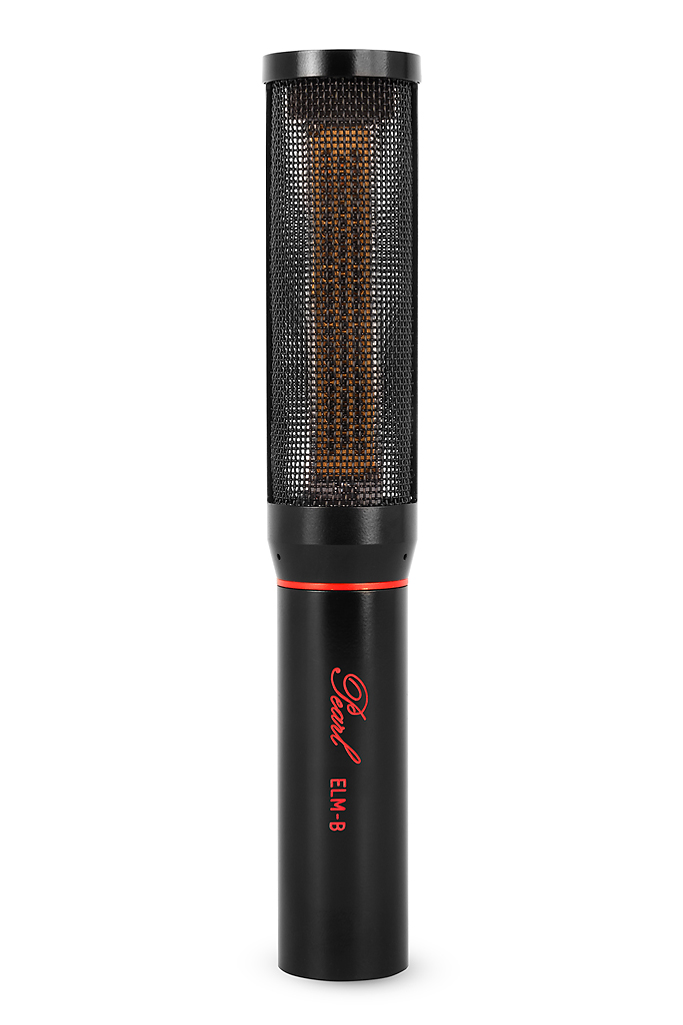

Pearl ELM-B Large Diaphragm Condenser Microphone

The bidirectional version of the spectacular ELM-series is perfect as part of a stereo pair in a Blumlein or M-S configuration.

Pearl ELM-B Large Diaphragm Condenser Microphone

The bidirectional version of the spectacular ELM-series is perfect as part of a stereo pair in a Blumlein or M-S configuration.

The Pearl ELM-B is the bidirectional edition of the ELM-series, built around Pearl’s spectacular extended rectangular capsule.

The 7:1 length/width ratio of the capsule means that the polar patterns looks like a standard bidirectional/figure-8 in the horizontal plane, while it vastly reduces high frequencies in the vertical plane, a property that can be extremely useful for reducing unwanted reflections from the floor and ceiling, providing the audio engineer with a valuable tool to handle poor room acoustics and challenging acoustical environments.

Just like the Pearl 2800 rectangular capsule, the longer ELM capsule combines the best characteristics from large and small diaphragms, i.e. low noise, detailed transient reproduction and an extremely smooth off-axis response.

The ELM-B is excellent as part of a stereo pair. Combine two ELM-B’s for Blumlein stereo, or pair the ELM-B with a cardioid microphone for an M-S stereo setup.

In combination, the unique characteristics of the ELM series microphones make them outstanding for orchestral and choral recordings and, as a result, they can be found with symphonies and opera houses all over the world.

The ELM-B is finished in piano black ED lacquer with a red logo, ring and engraved model number.

Package includes

  • Wooden box
  • Pearl 1930 shockmount
  • Individual frequency graph
Find a dealer Quote

Specifications

  • Product name

    Pearl ELM-B
  • Type

    Condenser
  • Frequency response

    20 Hz to 25,000 Hz
  • Polar pattern

    Bidirectional
  • Max SPL

    126 dB
  • Sensitivity at 1 kHz

    18 mV/Pa (± 1 dB)
  • A-weighted noise level (IEC 179-A)

    12 dBA
  • Power supply

    48 V Phantom (DIN/IEC)
  • Current consumption

    2.7 mA
  • Output impedance

    100 Ω
  • Recommended load impedance

    1 kΩ
  • Connection

    3-pin XLR
  • Length

    192 mm
  • Diameter

    28/32 mm
  • Net weight

    305 g
