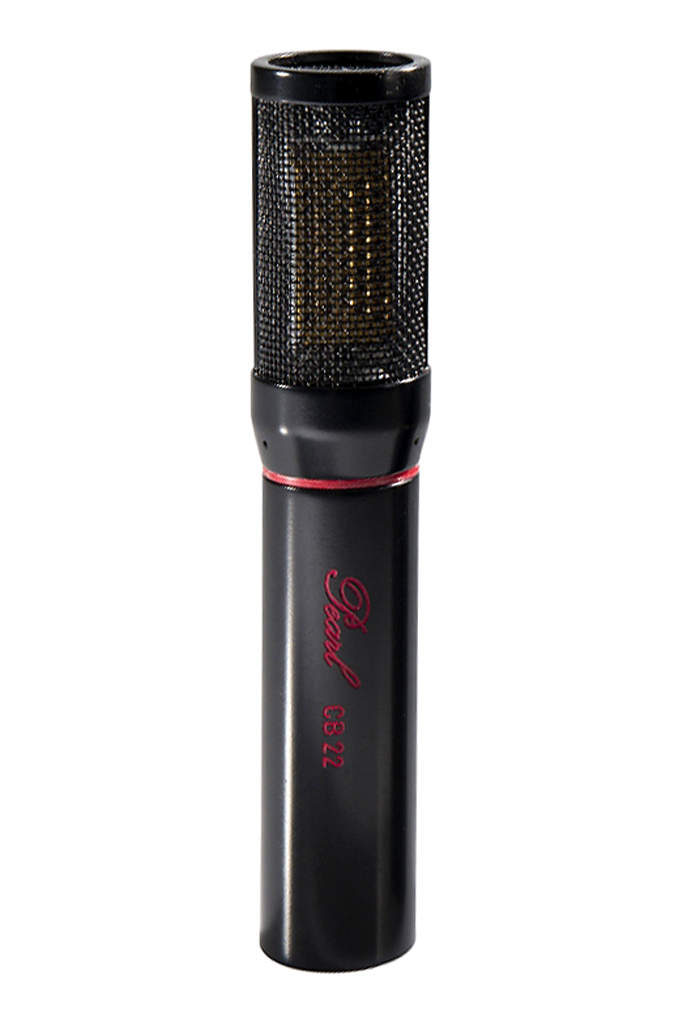

Pearl CB 22 Large Diaphragm Condenser Microphone

The bidirectional CB 22 features low self noise and a smooth off-axis response. It is perfect as part of a Blumlein or M-S stereo setup.

Pearl CB 22 Large Diaphragm Condenser Microphone

The bidirectional CB 22 features low self noise and a smooth off-axis response. It is perfect as part of a Blumlein or M-S stereo setup.

Compact and well built, the Pearl 22 series are outstanding condenser microphones constructed around the 2800 rectangular capsule and a low-noise amplifier. There are currently three different versions: the cardioid CC 22, the bidirectional CB 22 and the omnidirectional CO 22.

The detailed transient reproduction and smooth off-axis response makes the 22 series an excellent choice for orchestral and choral recordings, but it is just as perfect for other transient-rich sources, such as acoustic guitar or piano.

The bidirectional, natural sounding CB 22 is ideal as part of a stereo pair. Combine two CB 22’s for Blumlein stereo, or pair the CB 22 with a cardioid microphone for an M-S stereo setup.

The CB 22 is finished in piano black ED lacquer with a red logo, ring and engraved model number.

Package includes

  • Wooden box
  • Microphone shockmount 1930
  • Individual frequency graph
Find a dealer Quote

Specifications

  • Product name

    Pearl CB 22
  • Type

    Condenser
  • Article number

    B166
  • Frequency response

    20 Hz to 25,000 Hz
  • Polar pattern

    Bidirectional
  • Max SPL (1 % THD at 1 kHz)

    126 dB
  • Sensitivity at 1 kHz

    20 mV/Pa (± 1 dB)
  • A-weighted noise level (IEC 179-A)

    13 dBA
  • Power supply

    48 V Phantom (DIN/IEC)
  • Current consumption

    3.2 mA
  • Output impedance

    100 Ω
  • Recommended load impedance

    1 kΩ
  • Connection

    3-pin XLR
  • Length

    150 mm
  • Diameter

    28/32 mm
  • Net weight

    270 g
