Milab DC-196 Anniversary Ed.

Milab DC-196 Anniversary Ed. Large Diaphragm Condenser Microphone

Celebrating 80 years of Swedish micophone excellence with the Milab DC-196 Anniversary Edition.

Milab DC-196 Anniversary Edition
DC-196R_theater_2
Milab DC-196 Anniversary Ed. Large Diaphragm Condenser Microphone

Celebrating 80 years of Swedish micophone excellence with the Milab DC-196 Anniversary Edition.

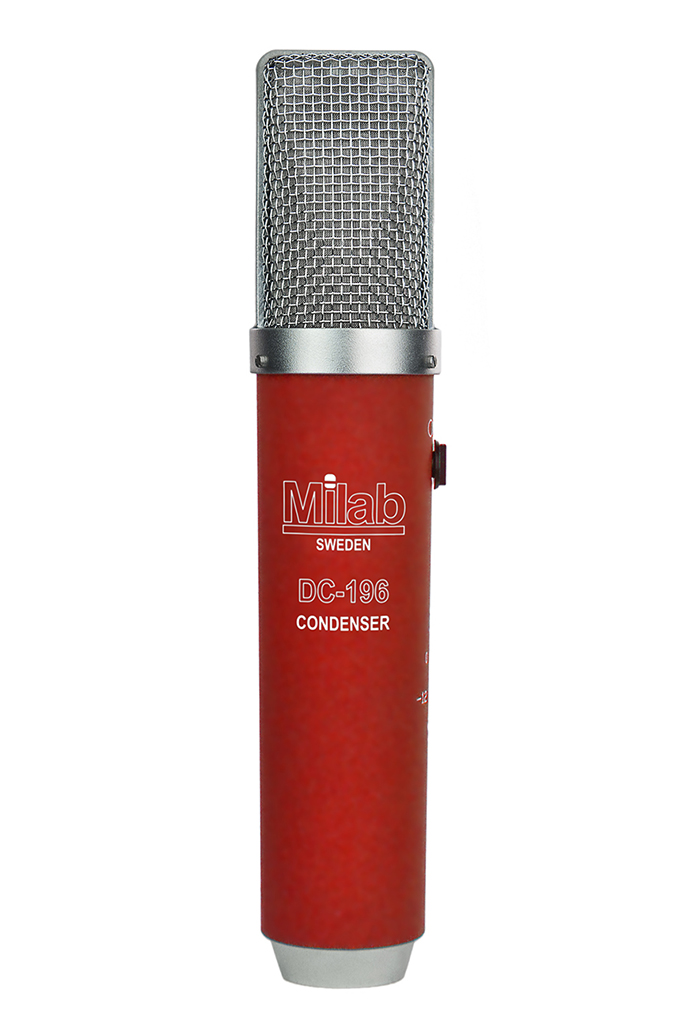

The DC-196 80th Anniversary Edition highlights the 80th anniversary of Pearl and Milab (1941-2021) and is coated in a beautiful red Nextel finish which gives it a bit more attitude than the more discreet black DC-196.

Available from November 2021.

More information is available on the product page for the regular DC-196.

Package includes: 3227 shockmount, 3403 windscreen and an individual frequency graph.

Find a dealer Quote
Download User Manual

Specifications

  • Product name

    Milab DC-196 Anniversary Edition

  • Type

    Condenser

  • Article number

    1133R

  • Frequency response

    20 to 20,000 Hz

  • Polar pattern

    Cardioid, Omni, Bidirectional

  • Pre-attenuation pad

    -12 dB (switchable)

  • Max SPL (1 % THD at 1 kHz)

    132 dB

  • Max SPL with 12 dB pad

    144 dB

  • Sensitivity at 1 kHz

    21,5 mV/Pa (± 1 dB)

  • A-weighted noise level (IEC 179-A)

    11 dB (typical); 12 dB (max)

  • Power supply

    48 ± 4 V Phantom (DIN/IEC)

  • Current consumption

    4.2 mA

  • Output impedance

    <200 Ω

  • Minimum load impedance

    1 kΩ

  • Connection

    3-pin XLR

  • Length

    145 mm

  • Diameter

    27 mm

  • Net weight

    230 g

Diagrams

The DC-196 is a great all-rounder that manages to avoid adding an obvious character to the sound but also manages to avoid sounding bland. Very versatile and refined.
Sound on Sound
